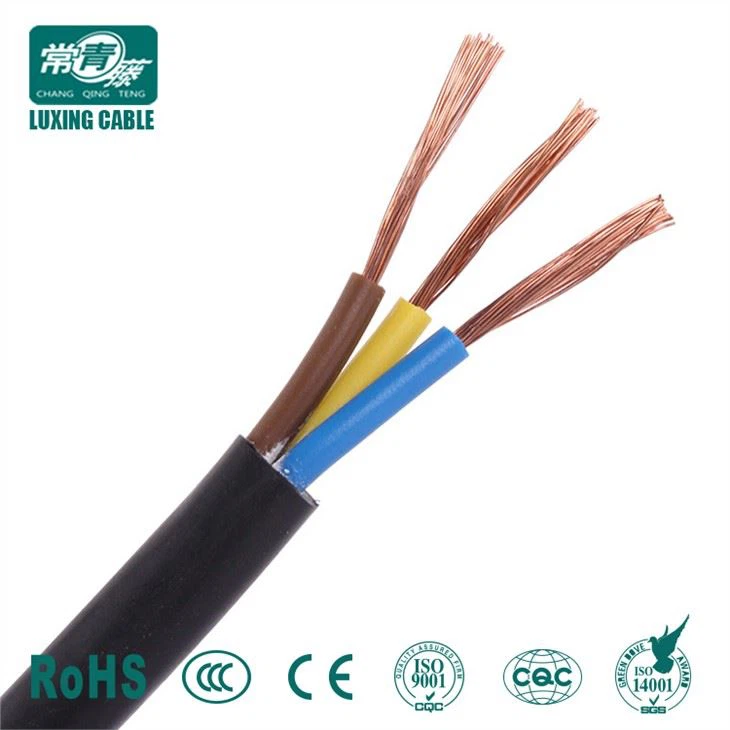

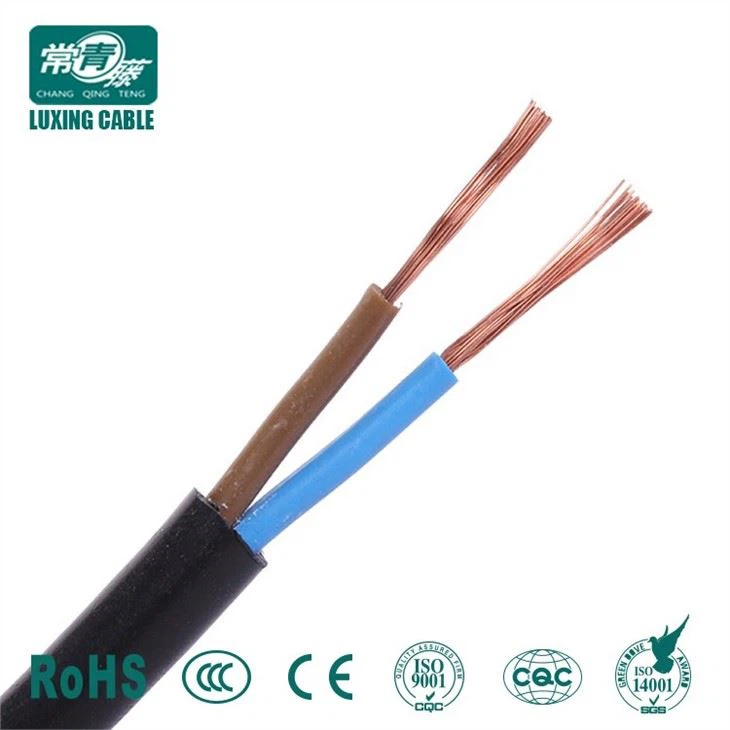

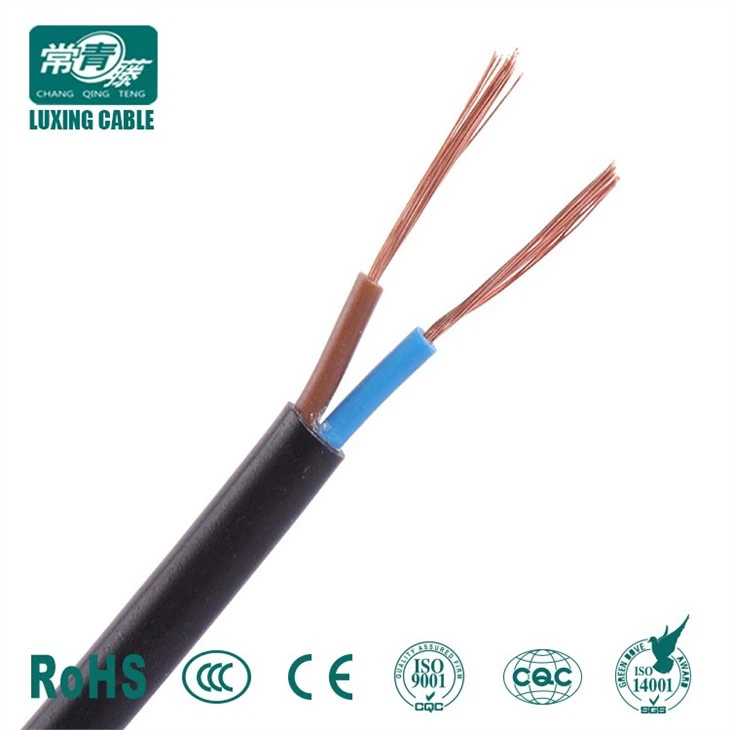

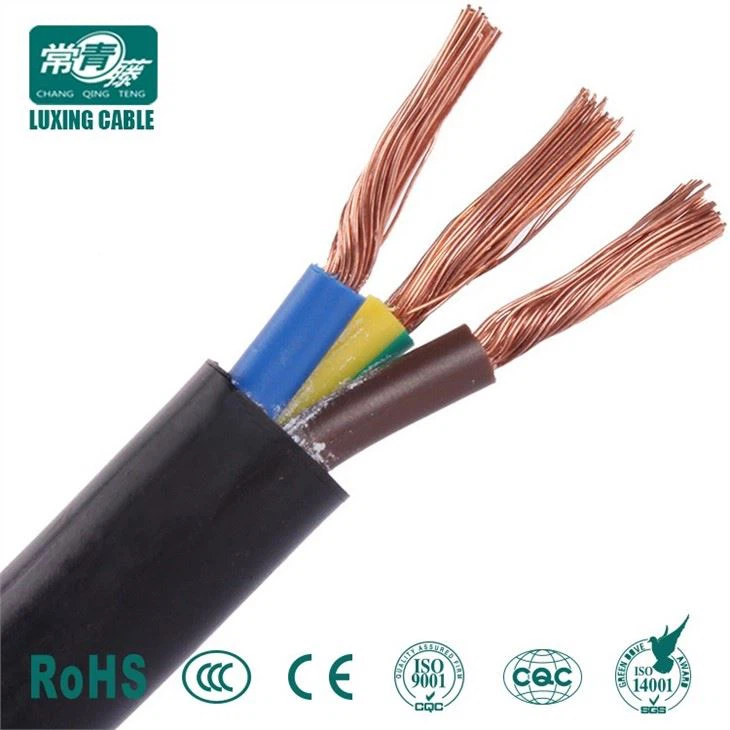

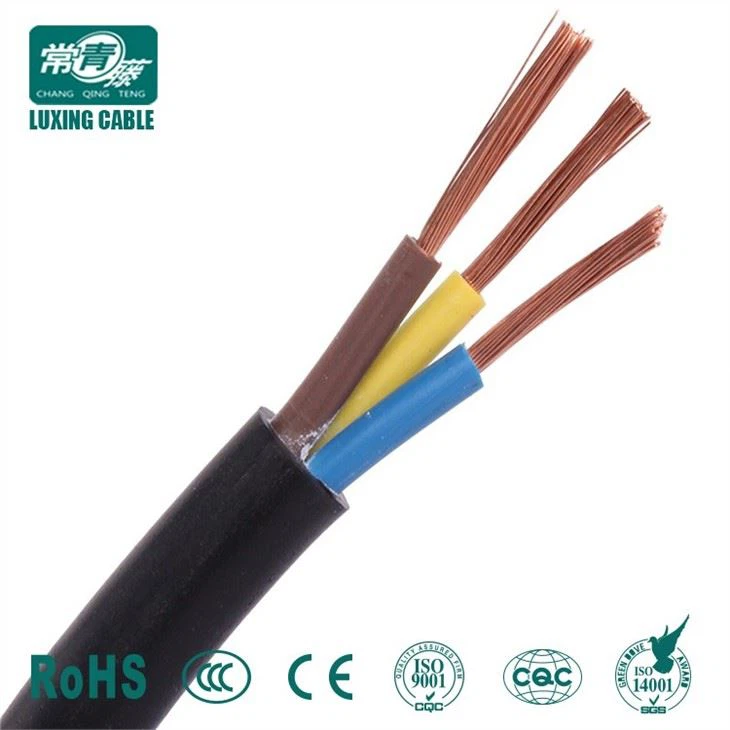

H05VV-F PVC Sheath Flexible Cables

Application: Flexible cable for dry areas, used for purposes requiring special flexibility in conditions free of any mechanical stresses. Permitted frequent bending and twisting. Specially suitable for application in small devices with low mechanical loads and for connection of light household devices such as kitchen appliances, desk lamps, ceiling lamps, vacuum cleaners, office machines, radios etc., as long as H03VV-F is adapted to essential specifications of the device.

Product Consulting
Whatsapp

share:

Specifications
About
Structure
Features
Selection
Applications
Tech Data
Comparison
FAQ
Tips
Logistics
Contact

Specifications

Technical Specifications & Performance

    Related Products

    Cores & SizeConductor ConstructionApprox. Cable ODDC Resistance (max, 20°C)Ampacity (air, 30°C)Approx. Weight
    4×1.5 mm²Solid (RE)~ 11.5 mm12.1 Ω/km20 A~ 220 kg/km
    4×2.5 mm²Solid (RE)~ 12.5 mm7.41 Ω/km27 A~ 295 kg/km
    4×4 mm²Solid (RE)~ 14.0 mm4.61 Ω/km36 A~ 400 kg/km
    4×6 mm²Solid (RE)~ 15.5 mm3.08 Ω/km46 A~ 525 kg/km
    4×10 mm²Solid (RE) / Stranded (RM)~ 17.5 mm1.83 Ω/km63 A~ 770 kg/km
    4×16 mm²Stranded compacted (CM)~ 20.0 mm1.15 Ω/km85 A~ 1,100 kg/km
    4×25 mm²Stranded compacted (CM)~ 24.0 mm0.727 Ω/km112 A~ 1,620 kg/km
    4×35 mm²Stranded compacted (CM)~ 26.5 mm0.524 Ω/km138 A~ 2,180 kg/km
    4×50 mm²Sector compacted (SM)~ 28.5 mm0.387 Ω/km168 A~ 2,860 kg/km
    4×70 mm²Sector compacted (SM)~ 32.5 mm0.268 Ω/km213 A~ 4,030 kg/km
    4×95 mm²Sector compacted (SM)~ 36.5 mm0.193 Ω/km258 A~ 5,300 kg/km
    4×120 mm²Sector compacted (SM)~ 40.0 mm0.153 Ω/km299 A~ 6,620 kg/km
    4×150 mm²Sector compacted (SM)~ 43.5 mm0.124 Ω/km344 A~ 8,170 kg/km
    4×185 mm²Sector compacted (SM)~ 48.0 mm0.0991 Ω/km392 A~ 10,050 kg/km
    4×240 mm²Sector compacted (SM)~ 53.5 mm0.0754 Ω/km461 A~ 13,000 kg/km
    4×300 mm²Sector compacted (SM)~ 59.0 mm0.0601 Ω/km530 A~ 16,100 kg/km
